Self-healing ClearCoat
Self-healing ClearCoat

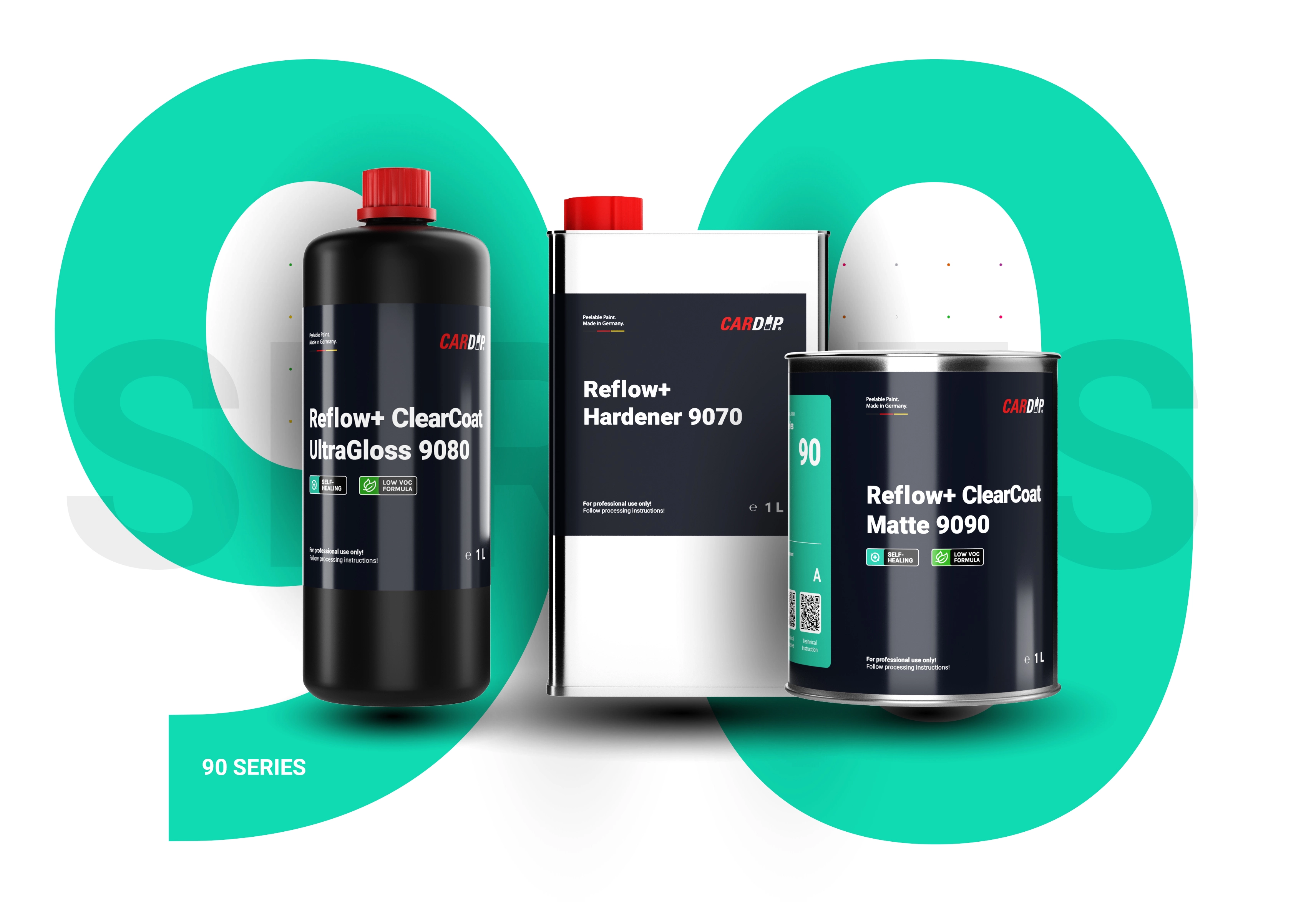

90 Series
Reflow+
ClearCoat
The CARDIP Reflow+ 2K HS ClearCoat is a permanently elastic, 2-component high solid clearcoat for the CARDIP® peelable paint spray film system with self-healing properties. Slight scratches, such as those caused by washing the vehicle, heal again when exposed to heat from the sun, a hot air dryer or hot water. The clearcoat is just as easy to apply as a conventional clearcoat and is extremely hard and scratch-resistant when cured. The product achieves a smooth and high-gloss surface as known from OEM/factory paints and can be sanded and polished like a conventional clearcoat.
The special feature of this special clearcoat is the water-based hybrid technology. The clearcoat does not meet the criteria for hazardous goods and is therefore very easy to use and handle. The polymer used builds up a permanently flexible polymer structure that can compensate for deformation caused by mechanical impact (scratches) through the effect of heat. The scratches "heal" as a result. The film coatings sealed with the 2K spray film clearcoat can be permanently cleaned in the automatic car wash. The clearcoat is cross-linked 3:1 with hardener 9070.
-
Product features
Self-healing
Water-based 2K
Permanently elastic - Container sizes 1 L
A strong coating
for peelable paint
The CARDIP Reflow+ spray film clearcoat is highly resistant to long-term mechanical stress. Peelable paint films coated with the self-healing clearcoat can be permanently cleaned in the automatic car wash without changing the gloss level or causing a "glossy" effect on edges.
The integrated high-performance additives give the spray film clearcoat a finish that is finish that is as durable as it is easy to clean.
Special development
for peelable paint
The self-healing CARDIP Reflow+ peelable paint clearcoat offers an optimum balance between efficiency, performance and user-friendliness. The sel-healing clearcoat for peelable paint is formulated for lasting flexibility with maximum surface hardness, making it particularly suitable for for overcoating elastic films.
Mechanical + Chemical resistance
In combination with CARDIP 2K HS Hardener 9070, the CARDIP Reflow+ clearcoat achieves a very dense cross-linking, making the surface of the spray film resistant to weathering, UV radiation and mechanical influences.
The polymer used builds up a permanently flexible polymer structure that can compensate for deformation caused by mechanical impact (scratches) through the effect of heat. This allows the scratches to "heal" again.
High gloss & matte
The CARDIP Reflow+ 2K HS clearcoat achieves a gloss level of 60-70E/20° according to DIN EN ISO 4816 in the high-gloss version 9080 and a gloss level of 15-20E/60° according to DIN EN ISO 4816 in the matte version strong9090. The clearcoat therefore achieves a surface finish that is indistinguishable from a modern factory finish. The gloss level can be adjusted by continuously mixing the two variants.
Low-VOC
High-Solid-
Formulation
The CARDIP Reflow+ clearcoat is a water-based hybrid system and has a very high solids content. This makes the clearcoat highly efficient and environmentally friendly at the same time. In addition, it does not meet the criteria for classification as a hazardous material and is therefore particularly easy to handle.

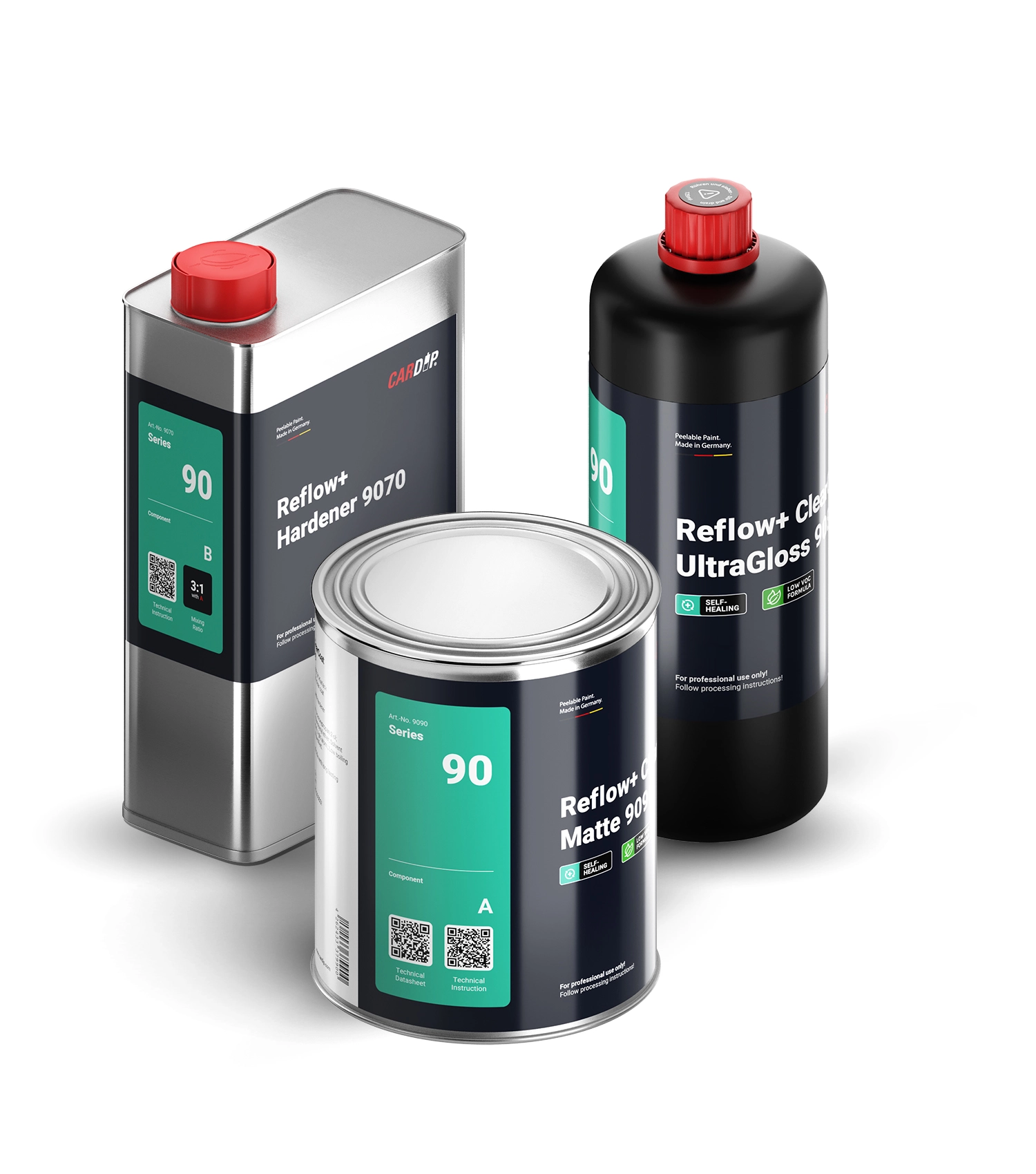

Complementary products
The CARDIP Reflow+ 2K HS spray film clearcoat is a system component of the CARDIP spray film system and not a stand-alone product. For correct function, the use of other products is necessary. These include
Häufig gestellte Fragen FAQ - Sprühfolie selbstheilender Klarlack Glänzend & Matt
Das CARDIP Sprühfolien System besteht aus einzelnen, exakt aufeinander abgestimmten Systemkomponenten. Wir raten dringend davon ab, herkömmliche Klarlacke auf Sprühfolien einzusetzen. Ein standard Automobilklarlack wird sehr hart. Die hohe Differenz im Härtegrad, zwischen der elastischen Sprühfolie auf dem Untergrund und dem harten Klarlack an der Oberfläche, kann zu Spannungsrissen, Abplatzern und Haftungsproblemen führen. Zudem kann die Abziehbarkeit stark verschlechtert werden. Außerdem können bestimmte Inhaltstoffe, wie etwa die eingesetzten Lösemittel, den Untergrund der Sprühfolie anquellen und dadurch die Funktion beeinträchtigen. Eine Freigabe für "alle Klarlacke" kann schon naturgemäß auf Grund der enormen Unterschiede unter den Klarlacken nicht erteilt werden. Zudem werden an die Sprühfolie, im Vergleich zur herkömmlichen Lackierung, mehr Anforderungen an die Funktionen gestellt (z.B. Abziehbarkeit).
Für die Klarlacke aus dem CARDIP System darf ausschließlich die systemeigene Verdünnung CARDIP Thinner Slow 850 verwendet werden.
Der CARDIP 2K HS Reflow+ Klarlack kann mit einer handelsüblichen Klarlackpistole appliziert werden, wie bspw. einer SATA 5500B RP oder Iwata WS-400. Die optimale Düsengröße liegt bei 1,3mm.
Der CARDIP Matte 8091 Sprühfolien Klarlack ist ein wichtiger Teil des Gesamtaufbaus und trägt zur Abziehbarkeit und Resistenz der Sprühfolie bei, ist jedoch alleine nicht abziehbar, sondern nur in Kombination mit dem Aqua+ BaseCoat 5080 angewendet nach dem Multi-Layer-Verfahren.
Ein klassischer "Zwischenschliff" wie bei standard Klarlacken ist auch mit dem CARDIP 2K HS Matte ClearCoat 8091 Sprühfolien Klarlack möglich.
